Dormitory/Corridor Cylindrical Lockset

NSN 5340-00-NIB-0248 / 534000NIB0248

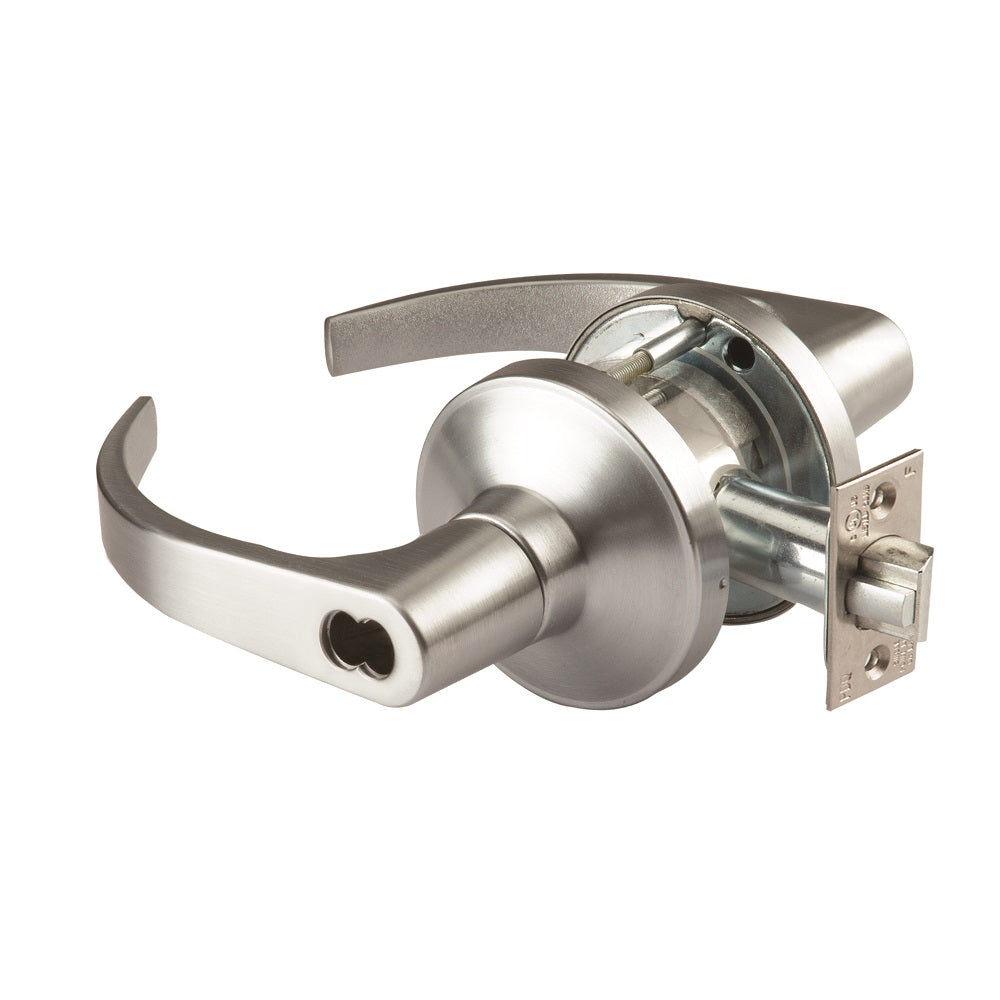

Commercial-grade GT 165 Cylindrical Lockset Features the F90 Dormitory/Corridor Function and a Boston-Style Lever. ANSI/BHMA Grade 1 Extra-Heavy-Duty Construction Is Designed for Demanding Applications.

Designed for Doors Measuring 1-3/4 to 2-1/4 Inches Thick, With a 2-3/4-Inch Backset and ASA Strike. The Small Format Interchangeable Core (SFIC) Housing Is Supplied Less Core. Core Is Not Included.

Not to be Sold Outside Federal Government

SPECIFICATIONS

• Category: Hardware, Commercial (FSC 5340)
• Unit of Measure: CS (bulk / case SKU)
• Case Pack: 6 Locksets per Case (packing fact; not a minimum order)
• Color / Finish: Satin Chrome (626 / US26D)
• Ordering: Bulk Quantity by Quote. Enter the Total Number of Individual Locksets Required
• Series: GT 165
• Function: F90 Dormitory/Corridor
• Lever Style: Boston
• Grade: ANSI/BHMA Grade 1
• Backset: 2-3/4 In
• Strike: ASA, 1-1/4 In x 4-7/8 In
• Door Thickness: 1-3/4 In to 2-1/4 In
• Core Housing: Small Format Interchangeable Core (SFIC)
• Key Cylinder & Keys: Not included

COMPLIANCE

• AbilityOne®
• TAA Compliant

Contractors, resellers and government buyers: Request a Quote

SHIPPING

• Ships Directly From the Manufacturer
• Pricing, freight and delivery timeframe provided by quote
• Freight Quoted Based on the Item(s) Requested. Delivery Timing Confirmed During Quote Review.
